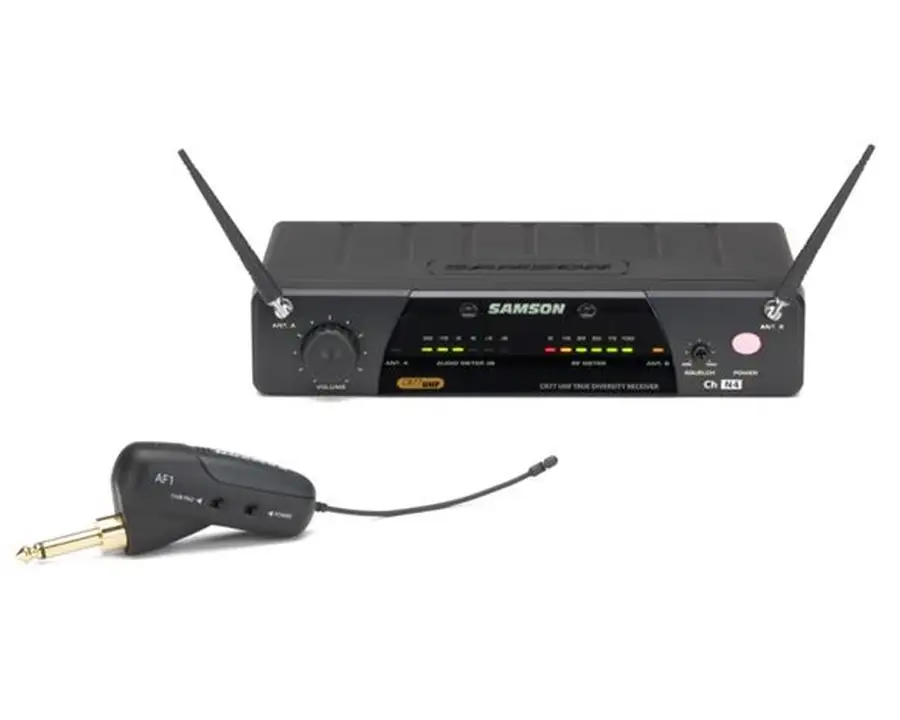

Samsons AirLine 77 Guitar system offers a true wireless experience with no beltpacks or cables, allowing total freedom of mobility. The system includes a AF1 Fender® (Stratocaster) style transmitter that plugs into your guitar or bass, along withthe CR77 receiver.
The AF1 Guitar Transmitters plug directly into the jack of the guitar with no cables running to a pack. The AF1 plugs in at a 45° angle for body mounted recessed jacks. These transmitters provide complete wireless freedom with no beltpacks orcables required. And they both offer up to 14 hours of battery life using a single AA battery
The core of the receiver system is the CR77 true-diversity half-rack UHF receiver. It works flawlessly with all AirLine UHF transmitters. Featuring a front panel display with large multi-segment audio level and RF level LED meters, and a largerotary volume knob that allows easy adjustment of audio output, the CR77 takes all of the guesswork out making your wireless system perform.
Its synthesized PLL frequency control circuitry keeps the signal locked and true while dual tuned molded antennas with LEDs monitor the true-diversity operation. The rear panel features balanced XLR and unbalanced 1/4" outputs allowing flexibleconnection options. In addition, two CR77 receivers can be rackmounted together in a single space rack adapter available as an added accessory.
AirLine 77 Guitar System
- UHF wireless system with PLL frequency control
- Available in multiple channels across two frequency bands (N: 642.375MHz–645.750MHz, K: 489.050MHz–492.425MHz)
- AC adapter and 1/4” audio cable included
CR77 Wireless Receiver
- True Diversity design minimizes dropouts
- Mountable half-rack chassis
- 1/4-wave antennas
- Multi-segment audio and RF level LED meters
- Volume and squelch controls
- Balanced XLR output, unbalanced 1/4" output
- Mic/Line level output switch
AF1 or AG1 Guitar Transmitter
- AF1 plugs directly into Fender® (Stratocaster)-style guitar output jacks (no beltpack or cable required)
- Offers up to 14 hours of battery life using single AA battery
- Power/low battery LED indicator
- 300 operating range (line-of-sight)
- Power and 15dB Pad switches
E4 - 864.875 MHz Wireless Operating Frequency (Fender Style)
- EAN: 0809164205005
- UPC: 809164205005
